Engineering for the Demanding: Baudouin PowerKit and the High-Horsepower Range
The Baudouin PowerKit line is built to give OEM genset manufacturers the performance, integration flexibility and reliability their most demanding customers require.
When a hospital loses mains power, or an oil platform needs its critical systems online within seconds, the engine at the heart of the standby genset is the last line of defence. It either performs or it doesn’t. There is no middle ground in mission-critical power and that is precisely the environment Baudouin’s PowerKit range is engineered for.

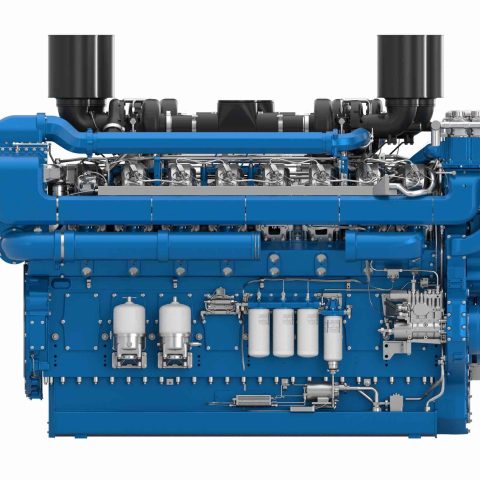

Spanning 650 kVA to 4,125 kVA across eight engine platforms, the PowerKit line is built to give OEM genset manufacturers the performance, integration flexibility and reliability their most demanding customers require. From the compact 6M33 at 650–825 kVA, through the mid-range M26 and M33 family, up to the 12M55 and flagship 16M55 delivering 2,813–4,125 kVA at standby rating – this is a range designed to cover the full spectrum of high-horsepower critical applications.
A Platform Architecture Built for Scale
The PowerKit range is structured around two core engine families, the M33 and M55, with the 12M26 bridging the lower end of the portfolio. Each platform follows a consistent engineering philosophy: high power density, robust mechanical architecture, and full compatibility with the operational realities of standby and prime power environments.
The M33 family alone spans four configurations: 6M33, 12M33, 16M33 and 20M33, covering 650 kVA to 2,750 kVA. The M55 then takes over where high-horsepower demands intensify, with the 12M55 and 16M55 extending the range up to 4,125 kVA. For OEMs building gensets for hospitals, industrial facilities, oil and gas installations or large construction sites, that breadth of choice within a consistent platform architecture significantly simplifies integration, spare parts management and after-sales support.
PowerKit by Baudouin: G3 Performance Across the Range
Every engine in the PowerKit lineup is G3 compliant, meeting ISO 8528-G3, the most stringent classification for transient response and load acceptance. In practical terms, this means the engine can handle sudden, full-load application without the voltage and frequency deviations that would compromise sensitive equipment. For critical infrastructure where load steps are unpredictable and the cost of instability is high, G3 compliance is a fundamental specification requirement, and Baudouin meets it across the board.
Redundant Starting: Standard Where It Matters
Reliability at start-up is non-negotiable in standby applications. Baudouin has addressed this with redundant starter motors across the entire PowerKit M33, M26 and M55 range.
On the M55 platforms, this comes as a default 2+2 configuration, providing an additional layer of assurance for the most critical installations. Starter activation can be managed either through the ECU or via an external control panel, giving OEMs and operators flexibility in how the system is integrated and monitored.
Fuel Flexibility Without Compromise
All PowerKit engines are fully compatible with HVO (Hydrotreated Vegetable Oil), enabling operators to significantly reduce well-to-wheel carbon emissions without any modification to the engine or reduction in performance. For projects where sustainability credentials are part of the specification, increasingly the case in healthcare, public infrastructure and large industrial contracts. This compatibility is a genuine operational advantage, available from day one.
For operations where biodiesel is the preferred option, B100 use is also supported, subject to an adjusted and more conservative maintenance plan.
Built in France for the demanding markets
Behind the product range sits the same integrated French manufacturing operation that underpins Baudouin’s data centre genset business. Three sites, 35,000 m² of production space, and full process control from engine manufacture through to final validation. For OEMs, that means a supplier with genuine industrial depth: one that controls its own quality, its own traceability, and its own delivery schedules rather than depending on an extended, fragmented supply chain.
In a market where lead times and reliability of supply have become as important as the product specification itself, that level of manufacturing control is a tangible differentiator.
The Engineering Behind Critical Power
More than a century of standby power engineering informs every engine Baudouin produces. The PowerKit range is the expression of that expertise applied to the realities of today’s critical infrastructure market.
Where the applications are more demanding, the fuel and emissions requirements are tightening, and the OEMs and operators specifying backup power need a supplier that can answer on all fronts.
